Description

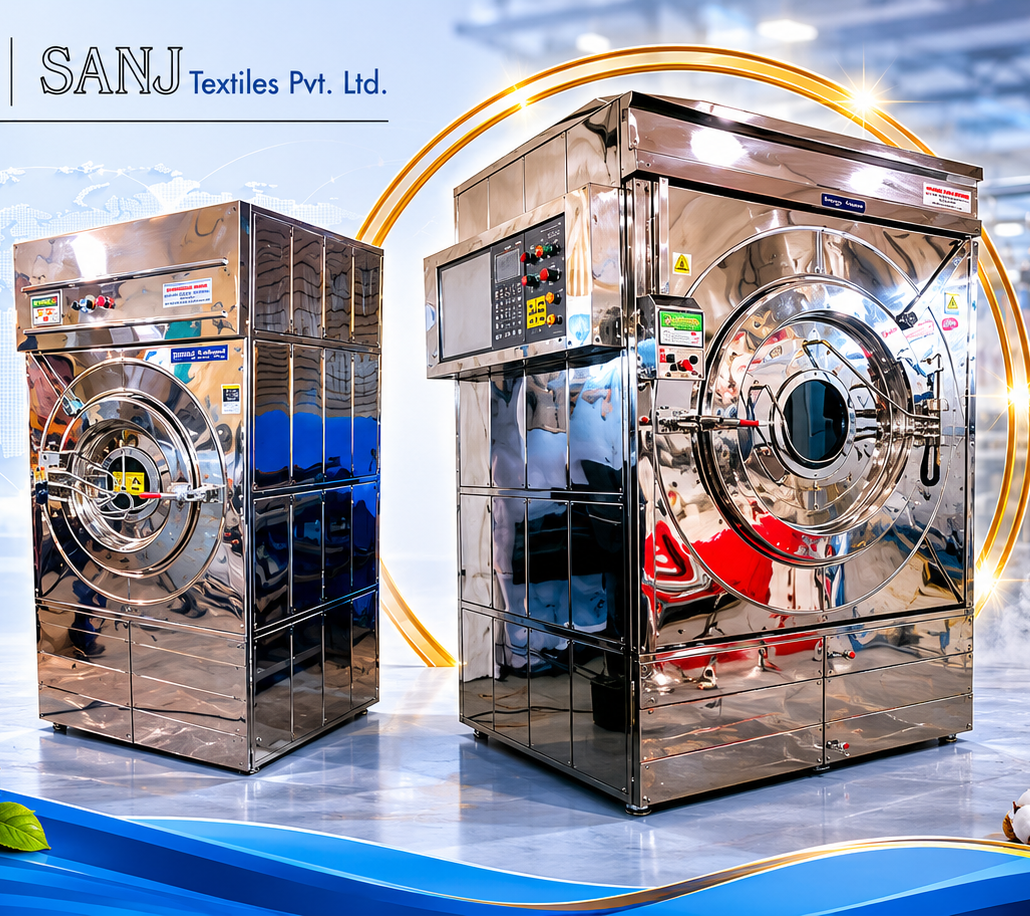

INDUSTRIAL DRYING TUMBLER
Front Loading, Open Pocket, reversible with cool down feature.
| Model | Capacity Dry Wt. Per Charge | Basket Size Volume | Drive Motor Blower Motor | Dosing Pump | Main Door Opening | Steam Connection Consumption | Electric | Thermal Fluid Connection Consumption | Diesel Consumption | Overall Dimensions WxDxH |
|---|---|---|---|---|---|---|---|---|---|---|
| SES 15 SEE 15 SET 15 SED 15 |
15 Kg. | 800×600 302 Lts. |
0.37 Kw 0.37 Kw |
0.5HP | 550 | 0.5″ BSP 15 Kg/Hr |
12 kw | 0.5″x0.5″ BSP 10000 Kcal/Hr |
2 Ltr./Hr | 900×1200 x1800 |
| SES 25 SEE 25 SET 25 SED 25 |
25 Kg. | 950×850 602 Lts. |
0.75 Kw 0.75 Kw |
1HP | 650 | 0.5″ BSP 30 Kg/Hr |
18 kw | 0.5″x0.5″ BSP 20000 Kcal/Hr |
2.5 Ltr./Hr | 1050×1460 x1980 |
| SES 50 SEE 50 SET 50 SED 50 |
50 Kg. | 1250×990 1214 Lts. |
1.5 Kw 1.5 Kw |
1HP | 800 | 0.5″ BSP 60 Kg/Hr |
36 kw | 1″x1″ BSP 40000 Kcal/Hr |
5 Ltr./Hr | 1350×1690 x2300 |
| SES 100 SEE 100 SET 100 SED 100 |
100 Kg. | 1600×1200 2411 Lts. |
2.25 Kw 1.5 Kw (2 Nos.) |
1HP | 1000 | 1″ BSP 120 Kg/Hr |
– | 1.5″x1.5″ BSP 80000 Kcal/Hr |
8 Ltr./Hr | 1750×2190 x2750 |
| SES 200 SEE 200 SET 200 SED 200 |
200 Kg. | 2050×1450 4785 Lts. |
5.50 Kw 5.5 Kw |
1HP | 1000 | 1.25″ BSP 200-300 Kg/Hr |
– | 1.5″x1.5″ BSP 100000 Kcal/Hr |
16 Ltr./Hr | 2130×2525 x3270 |
